Insulation materials

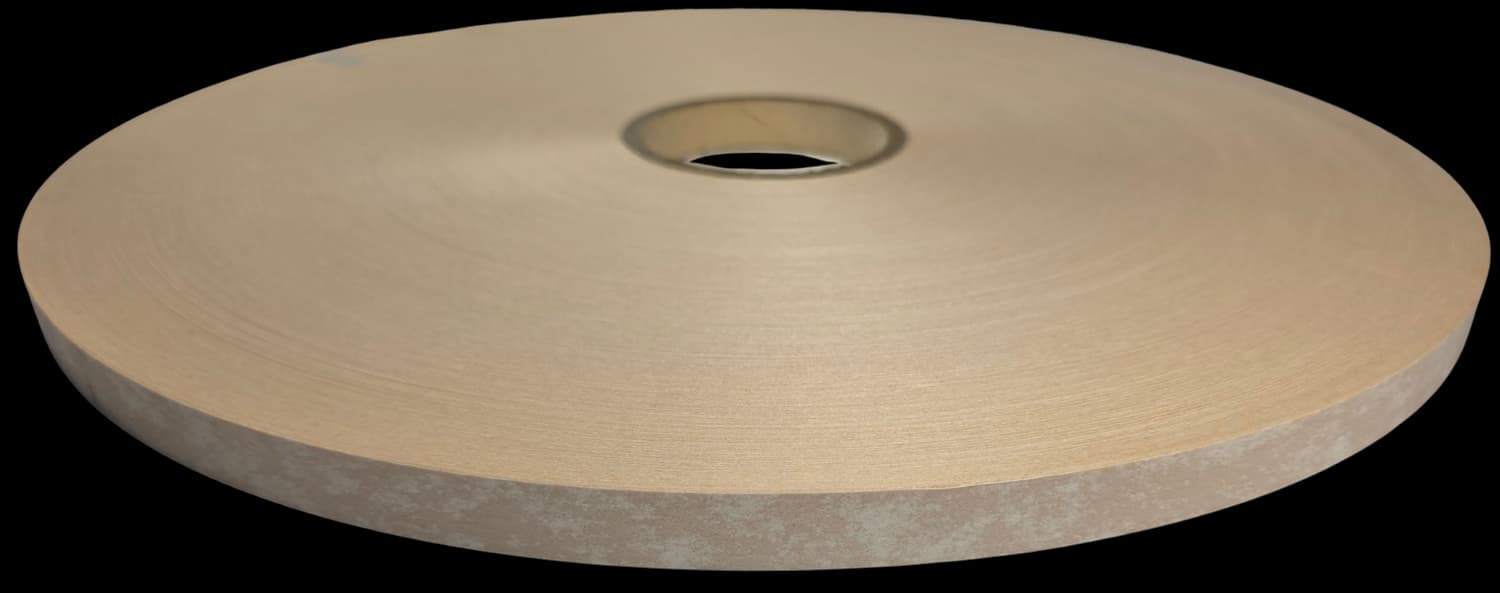

NKN Laminate of Nomex and Kapton
NKN is a three-layer laminate of Nomex, Kapton and Nomex.
NKN laminates combine the outstanding electrical and thermal properties of Kapton polyimide film with the good mechanical properties of Nomex aramid paper. Standard NKN uses calendered Nomex.
The result is a high-performance laminate of thermal class H up to 180 C per DIN EN 60085, used where polyester film laminates reach their thermal limits.
NKN is available in total thicknesses of 0.2 to 0.4 mm, and the individual layers can be laminated in different combinations depending on application and manufacturer.
When NKN is the right choice
NKN is the material for thermally demanding drives: class H motors, generators and applications with high continuous temperatures or tight spaces where the winding runs hotter than usual. Compared with plain Nomex aramid paper, the Kapton core offers considerably higher dielectric strength at the same thickness. If class F is sufficient, NPN laminate is the more economical alternative.
Typical applications
NKN is mainly processed into slot liners, phase separators and stamped parts for class H motors and generators, for example in wind power, rail technology and demanding industrial drives.
Delivery formats and processing
We supply NKN as slit rolls from a strip width of 4 mm, as sheets or as finished stamped and formed parts from our own production in Filderstadt. Request grades, thicknesses and prices via our contact form.
Frequently asked questions
How does NKN differ from NPN laminate?
The core: in NKN it is Kapton polyimide film, in NPN polyester film. Kapton lifts the laminate from class F to class H up to 180 C and increases dielectric strength. NPN is the more economical choice when class F is sufficient.
What thermal class does NKN have?
NKN belongs to thermal class H per DIN EN 60085, suitable for continuous temperatures up to 180 C.
In which thicknesses is NKN available?
In total thicknesses of 0.2 to 0.4 mm. Different combinations of Nomex and Kapton layer thicknesses are possible depending on application and manufacturer.
Where is NKN typically used?
In thermally demanding class H motors and generators, for example in wind power, rail technology and industrial drives, processed into slot liners, phase separators and stamped parts.
More Products

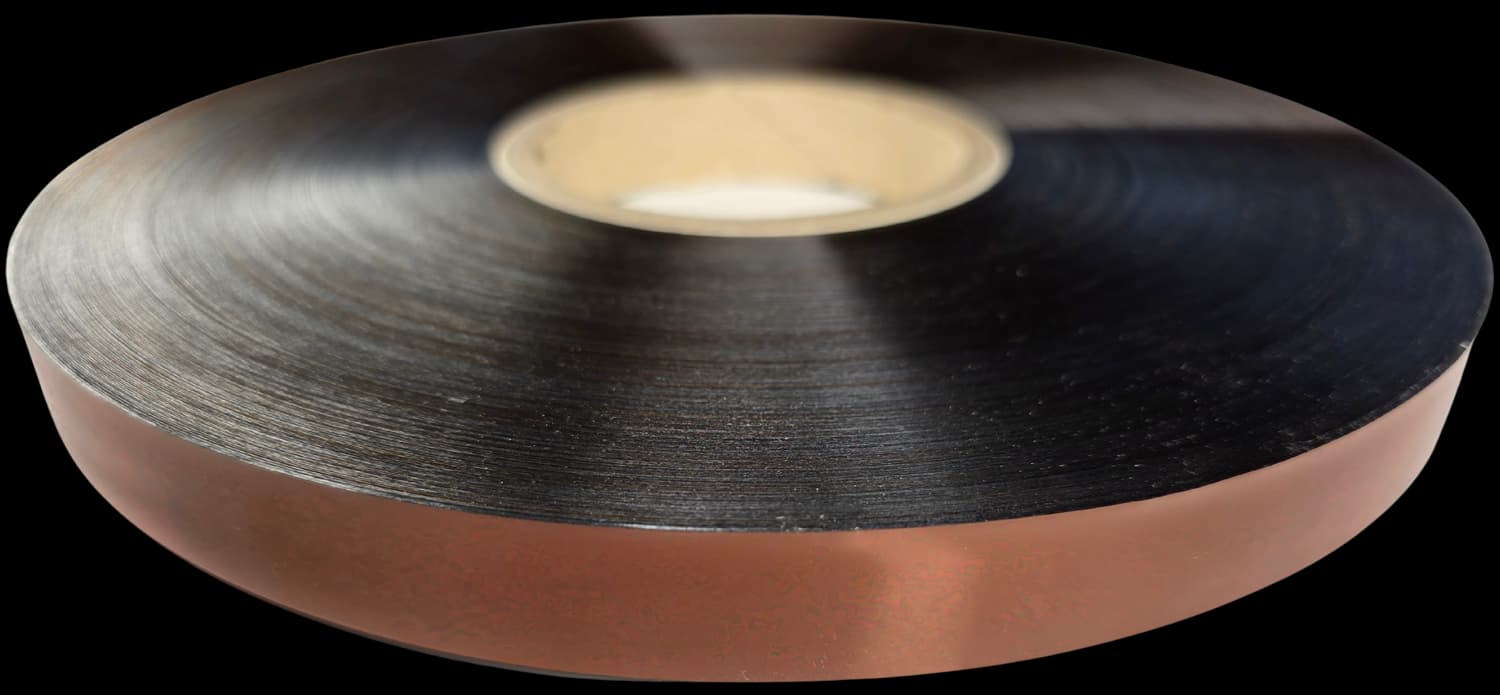

Kapton Polyimide Film for Extreme Conditions
Kapton HN by DuPont is a high-performance film for extreme conditions.
Learn more →

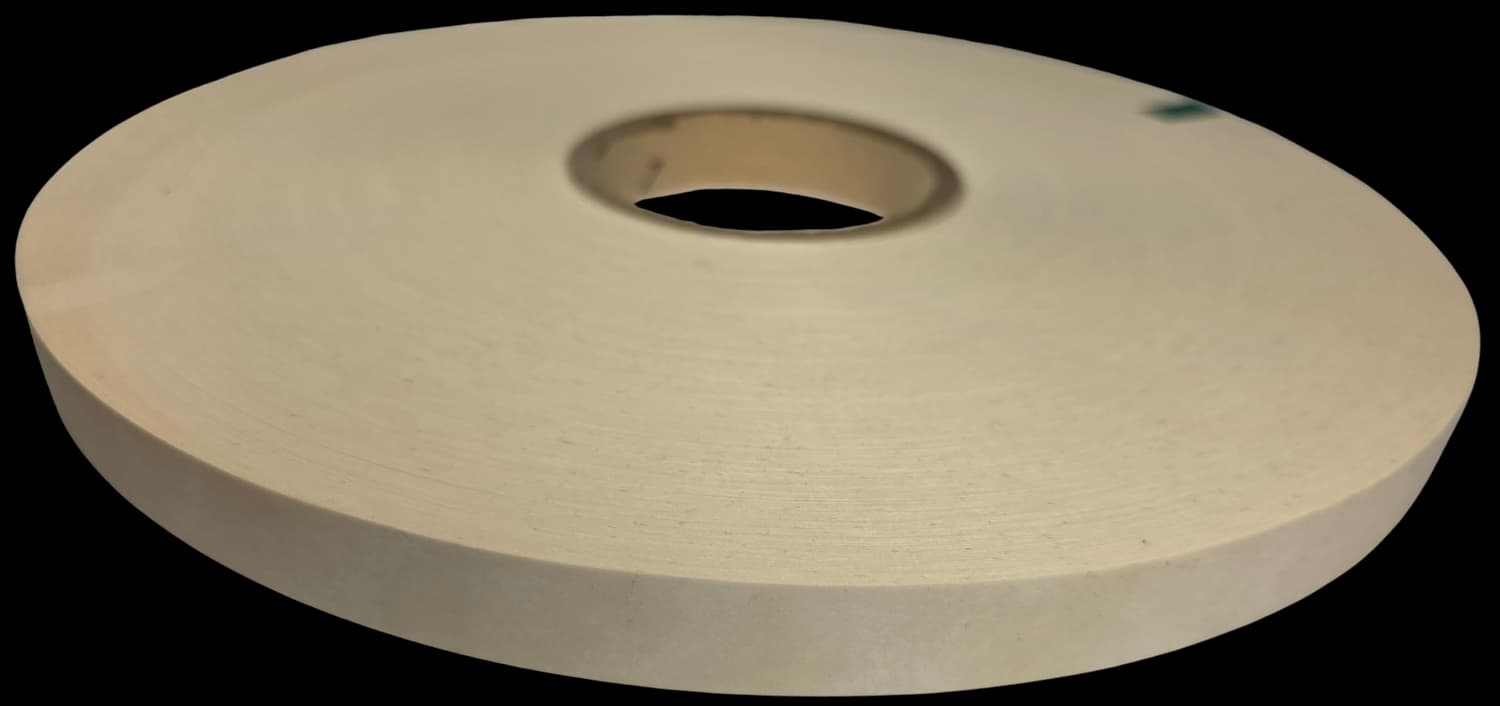

Nomex 410 Aramid Paper
Nomex 410 by DuPont is the original aramid paper.
Learn more →

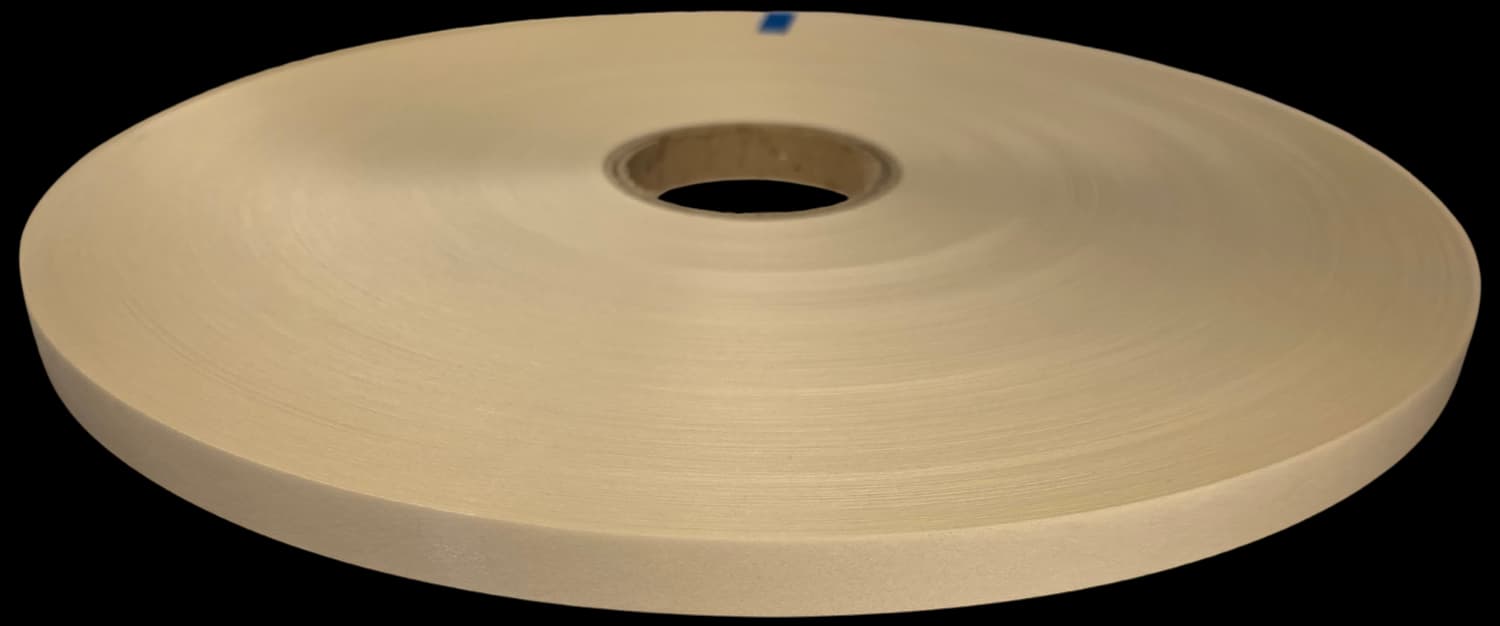

NPN Laminate of Nomex and Polyester Film
